STATE-OF-THE-ART · FULLY AUTOMATIC EMS FACILITY

Four fully automatic SMT lines under one roof

Every line runs the same closed loop: a fully automatic ESE paste printer, Pemtron 3D SPI with printer feedback, Hanwha chip shooters and fine-pitch placers, nitrogen reflow from TSM and Vitronics, and Pemtron 3D AOI with a 10 MP camera — with in-line loaders and unloaders at both ends, so boards go from bare PCB to inspected assembly without manual handling.

On customer request, Elymer has been designing and employing fully automated test fixtures for testing PCBs (off load and on load) using Mechanical CAD, and NI LabView DAQs and switches controlled by dot net front end.

4
fully automatic SMT lines
482k+
CPH capacity across 4 lines
20 µm
placement accuracy
≤ 20
DPMO outgoing quality

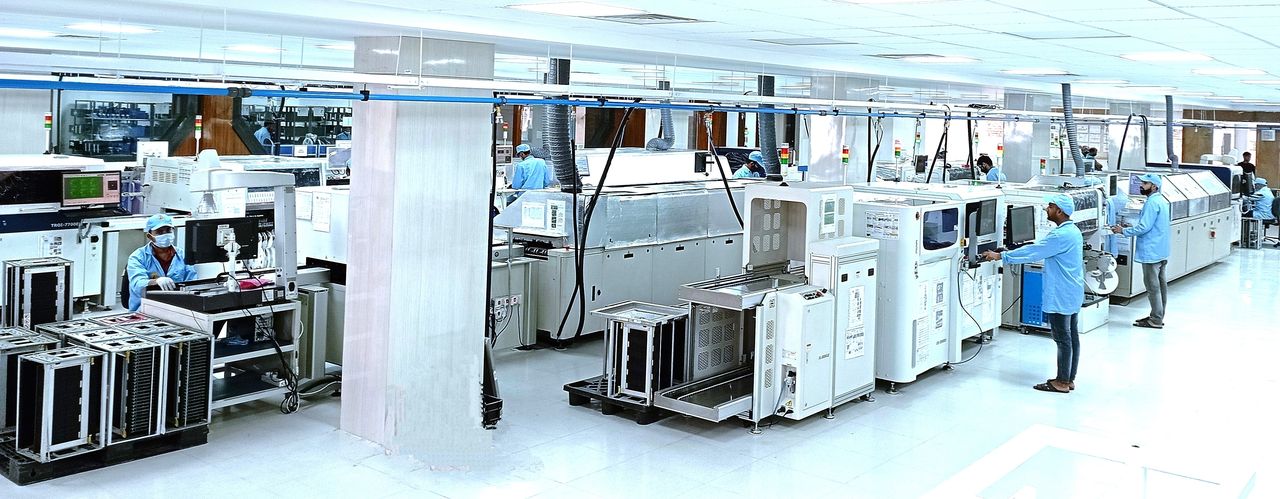

Elymer's SMT floor in Faridabad
LINE EXPLORER

Four SMT lines, machine by machine

Every line runs from automatic loading to 3D inspection without manual handling. Pick a line to see its equipment in production order.

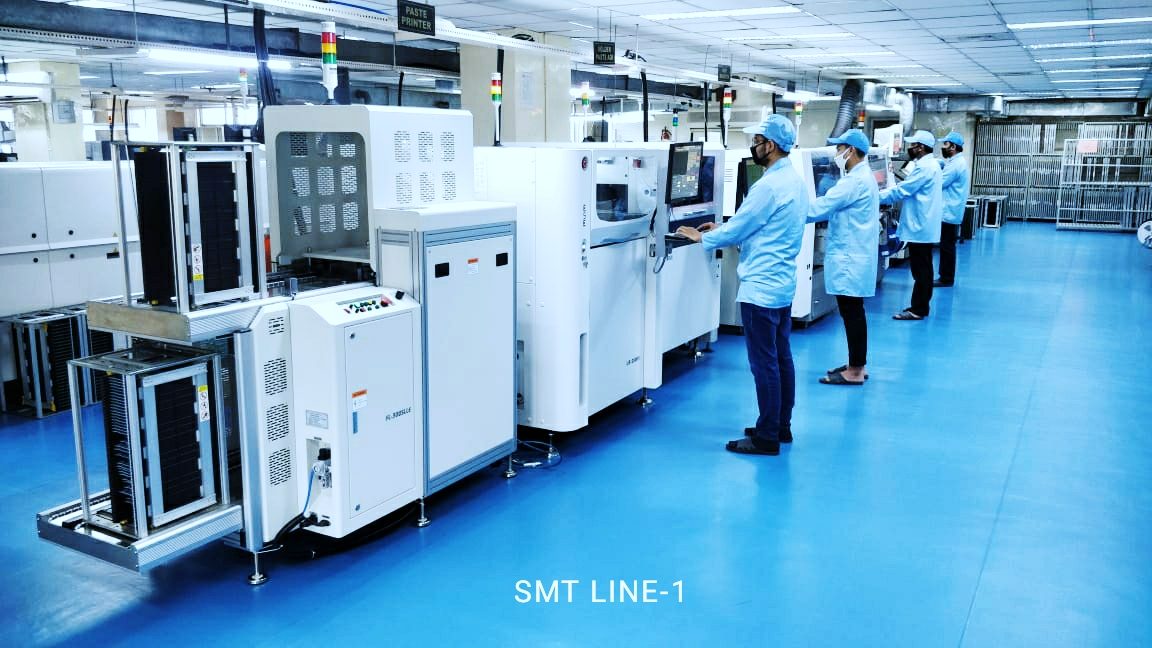

Elymer SMT line 1
SMT LINE 1
LINE 1 AT A GLANCE
Placement
Hanwha 471Plus CPH 78,000Hanwha 481 CPH 40,000
Reflow
TSM TRN II (L) + N2 generator10 heating + 2 cooling zones · lead-free
Printing
ESE US 2000XFully automatic
Inspection
Pemtron 3D SPI + 3D AOIPrinter feedback · 10 MP camera
Handling
In-line loaders & unloaderFL300SLLE · bare PCB vacuum loader
LINE LAYOUT9 stations · board flow

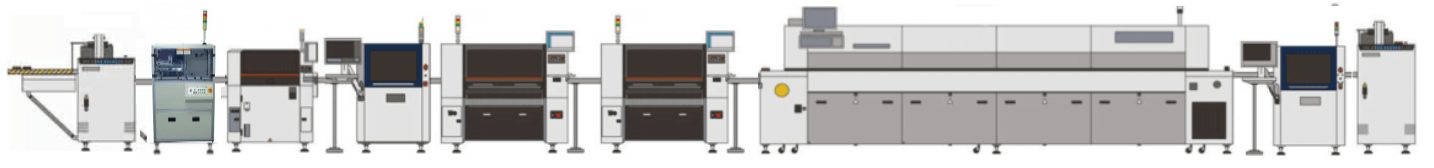

Layout drawing of SMT line 1
  1. 01PCB loaderFL300SLLEFully automatic
  2. 02Bare PCB vacuum loaderIn-line
  3. 03Paste printerESE US 2000XFully automatic
  4. 043D SPIPemtron TROI7700ELPrinter feedback
  5. 05Chip shooterHanwha 471PlusCPH 78,000
  6. 06Pick & placeHanwha 481CPH 40,000
  7. 07N2 reflowTSM TRN II (L) + N2 generator10 heating + 2 cooling zones · lead-free
  8. 083D AOIPemtron EAGLE 8800 Compact10 MP camera
  9. 09UnloaderIn-line
WHY ELYMER

Salient Features of the SMT Facility

Panel Size

50 mm × 50 mm to 500 mm × 450 mm.

Component Sizes

0.6 mm × 0.3 mm (0201) to large connectors.

Component Mounting

Flip Chip, BGA, µBGA, MELF, CSP and fine pitch down to 0.4 mm.

Placement Accuracy

Placement accuracy of 20 µm.

Intelligent Feeding

Tape, stick, tray and bulk — all tape feeders are intelligent.

Dual Side Mounting

Can mount components on both sides of PCB.

Nitrogen Reflow

N2 reflow ovens with up to 10 heating zones, lead-free compatible.

3D SPI Inspection

Automatic in-line optical 3D solder paste inspection with printer feedback.

3D AOI Inspection

Automatic in-line optical 3D inspection (10 MP camera) with SPI feedback.

X-ray Inspection

Automated X-ray scanning and data analysis.

In-line Handling

In-line bare PCB loader, loader and unloader on every line.

Error Free Loading

Auto-verification via in-house mobile apps used by operators.

Capacity

More than 482k CPH across 4 lines.

24x7 Operations

Round the clock working with quick turn-around times.

SMART FACTORY

Automated, not manual

Programming, loading, profiling and inspection are handled by the system, not by hand.

  • Automated line loading and production allocation
  • Automated placement programming from BOM and Gerber
  • Automated reflow profile setting as per PCB density and component side
  • Use of artificial intelligence
  • Remote operation of printer, SPI and AOI
  • Automated X-ray scanning and data analysis
TRACEABILITY

Every reel and every board, in our own ERP

Our ERP has used all machine data since 2019, and traceability data is accessible on Windows and Android.

  1. 1Reel registrationEvery reel gets a barcode label when it arrives
  2. 2Feeder preparationReel and feeder are scanned together
  3. 3Part conformity checkEach reel is verified at the machine before use
  4. 4Lot trackingEach board's 1D / 2D code is logged with reel IDs and part data
Our own ERPAll machine data since 2019
Windows Android
BEYOND SMT

Testing, finishing and tooling — in-house

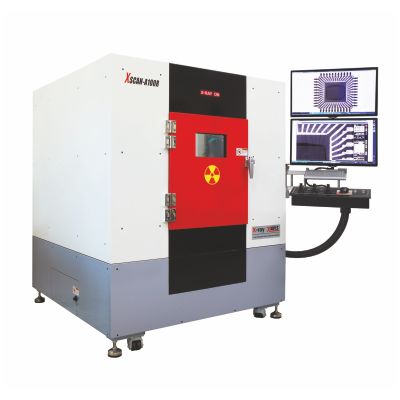

X-ray Inspection

X-ray Inspection

BGAs and other hidden solder joints checked by automated X-ray scanning and data analysis.

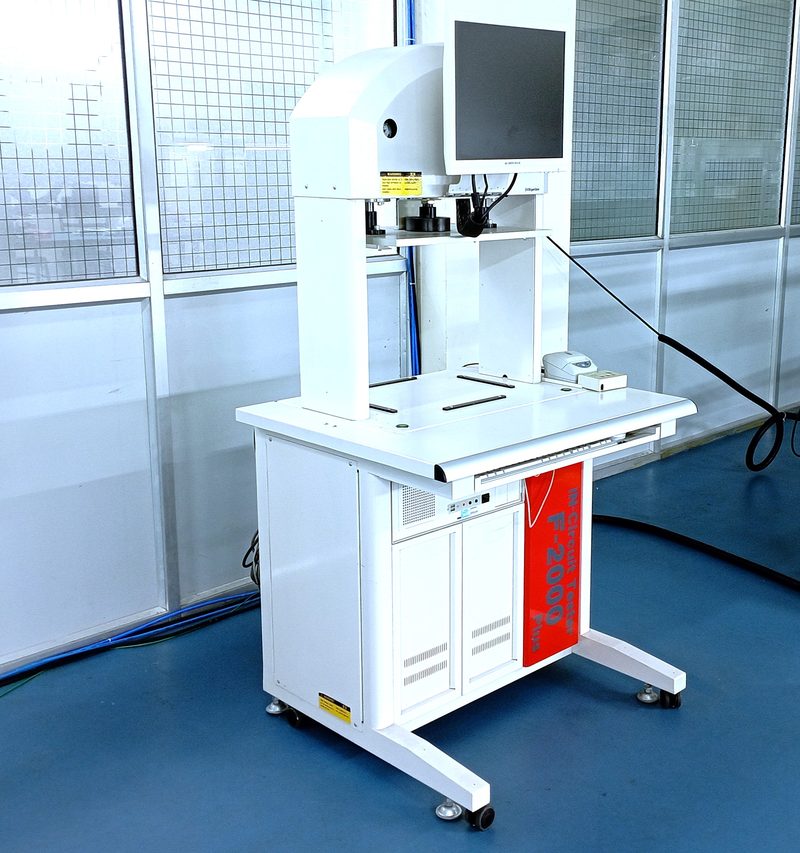

In-Circuit Testing (ICT)

In-Circuit Testing (ICT)

Assembled boards tested in-circuit, plus fully automated test fixtures designed in-house with NI LabVIEW.

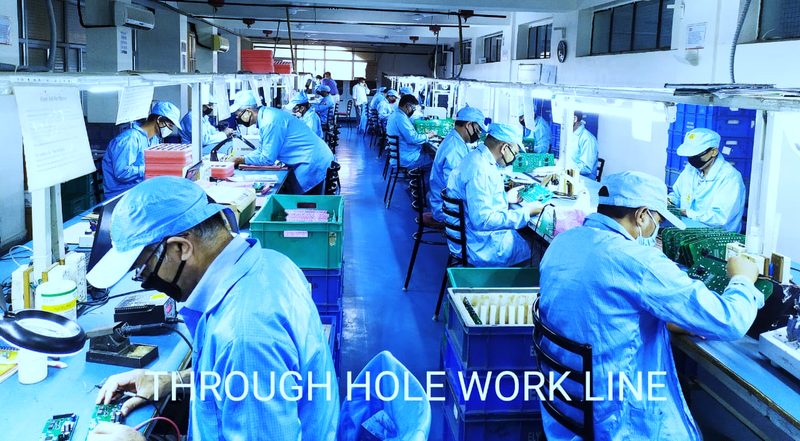

Through-Hole Assembly

Through-Hole Assembly

A dedicated through-hole work line for mixed-technology boards.

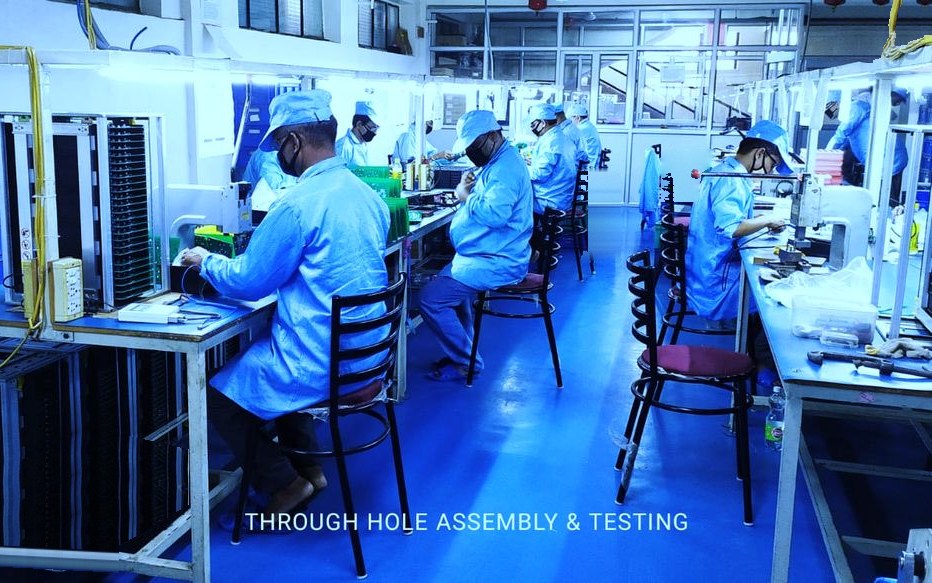

Assembly & Testing

Assembly & Testing

Through-hole assembly and testing of finished boards.

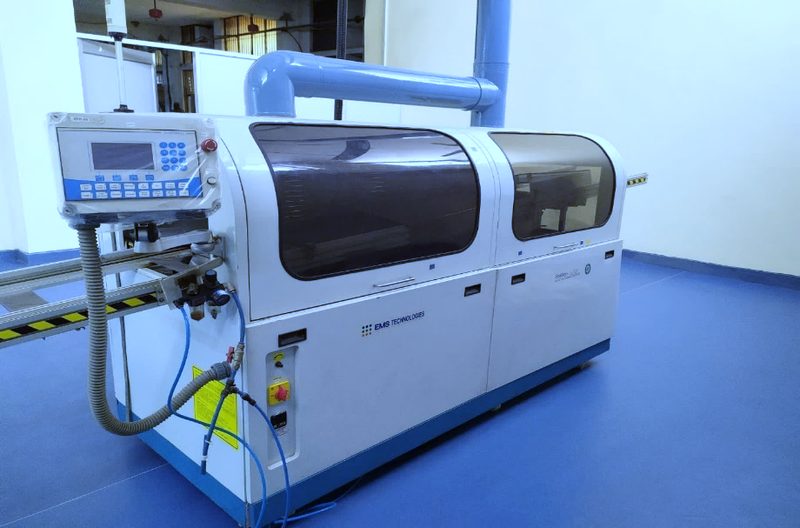

Wave Soldering

Wave Soldering

RoHS and non-RoHS wave soldering.

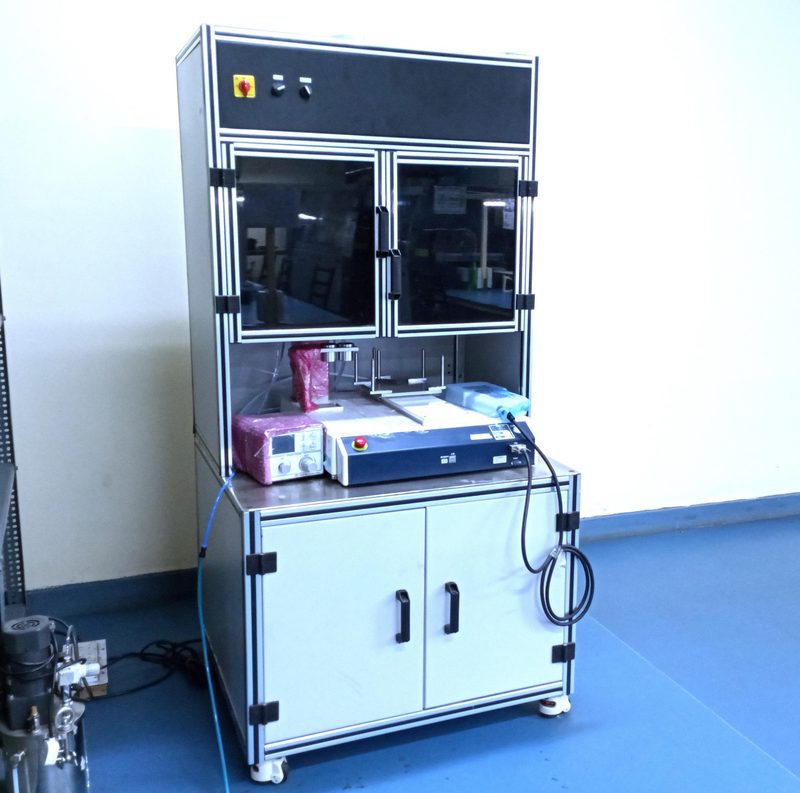

Conformal Coating

Conformal Coating

Protective conformal coating for boards that face harsh environments.

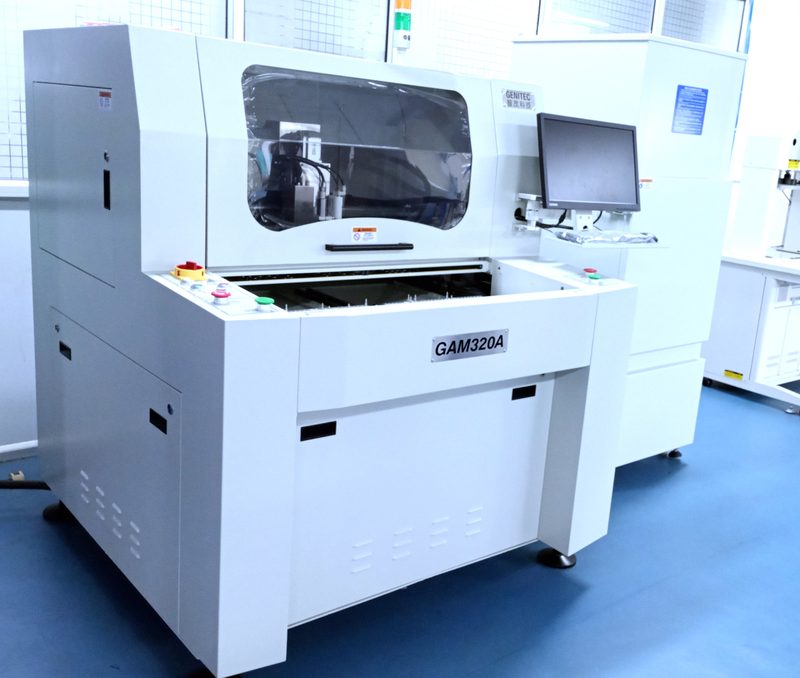

PCB Routing

PCB Routing

Automatic routing to separate boards from panels cleanly.

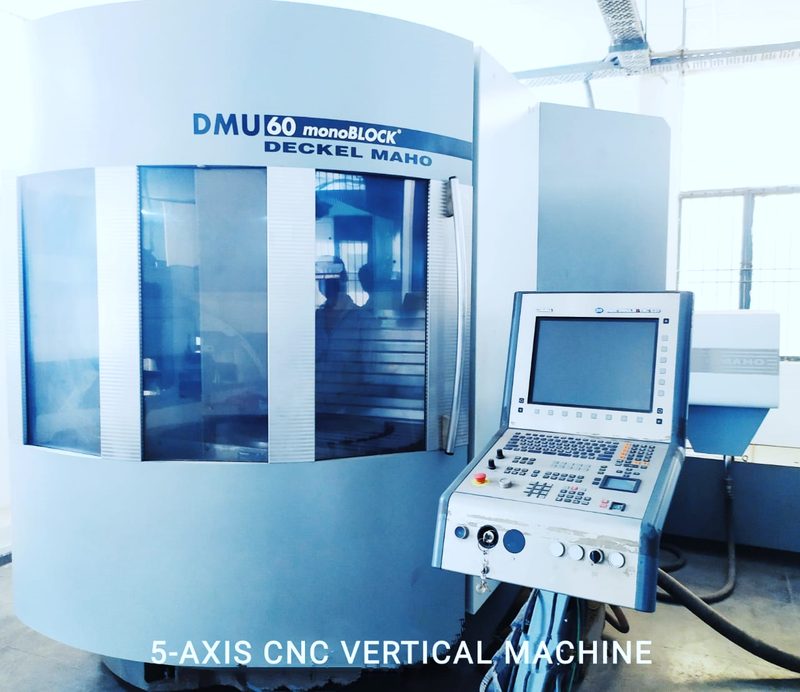

In-house Tool Room

In-house Tool Room

Fixtures, jigs and moulds made in-house: DMG 5-axis CNC, Haas 3-axis, Fanuc wire cut and Charmilles EDM.

See the tool room
INSTANT FEASIBILITY CHECK

Can we build your board?

Enter your PCB details and see in real time how they compare with Elymer's published SMT line capability — then send the result straight to our EMS team for a quote.

01 Board
mm
mm
Assembly
02 Components
Smallest chip component
20 mm
Finest lead pitch (mm)
Packages on the board
03 Volume
boards
LIVE RESULTWithin capability
160 × 100 mmMAX 500 × 450 mmMIN 50
Your board fits our SMT lines.6/6 checks within Elymer's published SMT capability
  • PCB Size Range160 × 100 mm
    Elymer: Panel size 50 mm × 50 mm to 500 mm × 450 mm.
  • Dual Side MountingDouble side
    Elymer: Can mount components on both sides of PCB.
  • Component Sizes0402 → 20 mm
    Elymer: Component sizes 0.6 mm × 0.3 mm (0201) to large connectors.
  • Component Mounting0.5 mm pitch · BGA, QFN / QFP
    Elymer: Flip Chip, BGA, µBGA, MELF, CSP and fine pitch down to 0.4 mm.
  • 3D SPI & 3D AOI InspectionIncluded on every line
    Elymer: 3D SPI with printer feedback · 3D AOI (10 MP) with SPI feedback · X-ray in-house
  • Capacity17,50,000 placements
    ≈ 3.6 h of placement at our CPH capacity*
Email spec to EMS team

* Indicative only — based on our capacity of more than 482k CPH across 4 lines. Actual schedules depend on line allocation and your BOM.
