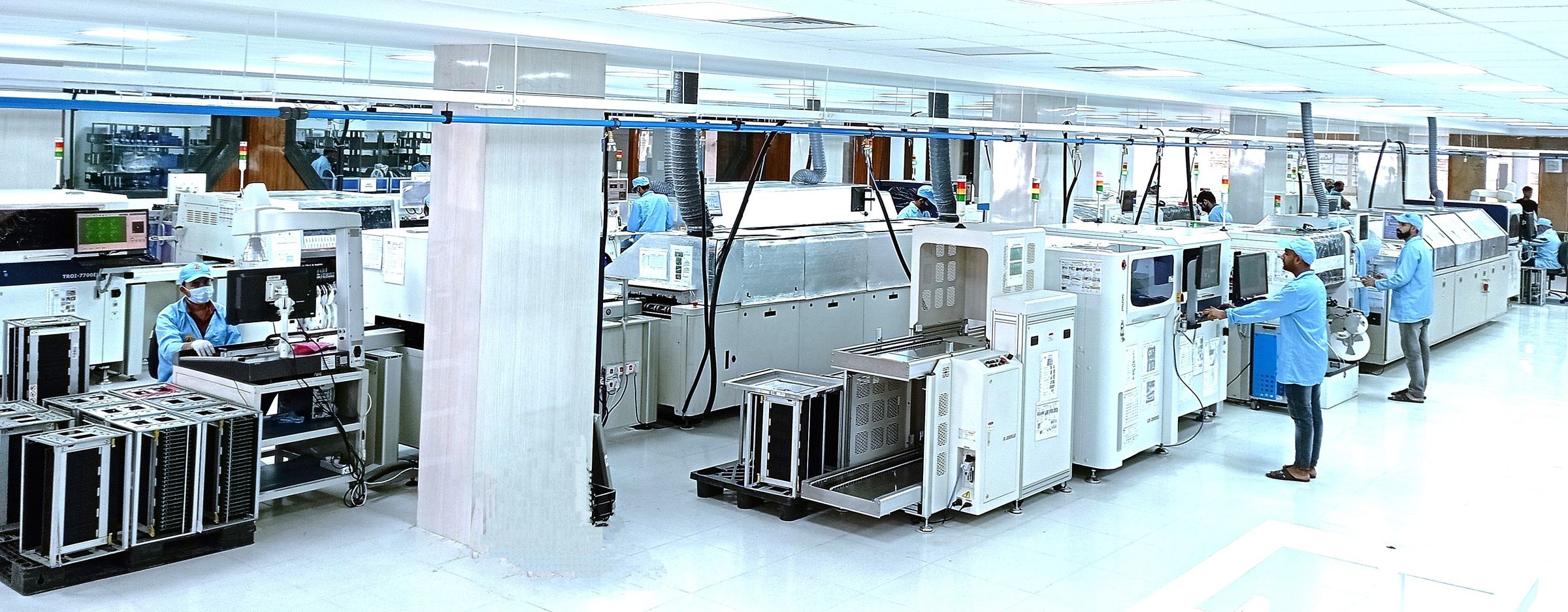

Elymer's fully automatic SMT lines in Faridabad
STATE-OF-THE-ART · FULLY AUTOMATIC EMS FACILITY

Fully automated EMS.Higher quality. Faster turns. Lower cost.

Four fully automatic SMT lines — programmed straight from your BOM & Gerber, verified by closed-loop 3D SPI, 3D AOI and X-ray, and tracked from reel to board. That's how we keep outgoing quality within 20 DPMO.

  • IATF 16949:2016
  • ISO 9001:2015
  • Faridabad, India
40+ yearsEstablished 1984
≤ 20 DPMOoutgoing quality
IATF 16949ISO 9001 · BIS certified
supplier toAutomotive OEMs
THE AUTOMATION ADVANTAGE

From your BOM to a tested, traceable board — automated at every step

This is the closed loop every Elymer SMT line runs. Pick an outcome to see where it's built in, or tap any station on the line.

AUTOMATED SMT LINEUse ← → or tap a station
BOM.xlsx
Gerber.zip
PLACEMENT PROGRAMR101 · 0402 · X 12.40 Y 08.10 · 0°C214 · 0603 · X 31.75 Y 22.05 · 90°U7 · BGA · X 54.20 Y 40.60 · 0°Q3 · SOT-23 · X 66.10 Y 12.85 · 180° Line allocated automatically
01 · Program
STATION 01 / 10

Programmed from your data

Automated placement programming · production allocation

  • Placement programs generated automatically from your BOM and Gerber files
  • Automated line loading and production allocation across 4 SMT lines
  • No manual re-keying of part data — fewer set-up errors, faster NPI
Faster turnsHigher quality

Our Services

Electronics Manufacturing Services

Four fully automatic SMT lines with Hanwha placement machines, ESE solder paste printers, Pemtron 3D SPI and 3D AOI, and reflow ovens from TSM and Vitronics.

Learn More

Research And Development

Elymer provides Electronic Design Services (EDS) at any phase of the product development cycle from the conceptual stage to mass production.

Learn More

Mechanical Design & Production

Elymer offers multi-disciplinary Engineering Design and Detailing Services using intelligent and state of art technology applications.

Learn More

IT & Software Development

Elymer provides the best-in-class innovative and reliable technology solutions portfolio, expertly integrated to enhance capabilities and future computing environments of its clients.

Learn More

Energy Measurement Solutions

Elymer is the only company that can provide a full electricity measurement solution from strategy through product design and end-user applications.

Learn More

Wireless Comms. & Automation

We deliver communications solutions based on our depth of understanding of all areas of this infrastructure.

Learn More
INSTANT FEASIBILITY CHECK

Can we build your board?

Enter your PCB details and see in real time how they compare with Elymer's published SMT line capability — then send the result straight to our EMS team for a quote.

01 Board
mm
mm
Assembly
02 Components
Smallest chip component
20 mm
Finest lead pitch (mm)
Packages on the board
03 Volume
boards
LIVE RESULTWithin capability
160 × 100 mmMAX 500 × 450 mmMIN 50
Your board fits our SMT lines.6/6 checks within Elymer's published SMT capability
  • PCB Size Range160 × 100 mm
    Elymer: Panel size 50 mm × 50 mm to 500 mm × 450 mm.
  • Dual Side MountingDouble side
    Elymer: Can mount components on both sides of PCB.
  • Component Sizes0402 → 20 mm
    Elymer: Component sizes 0.6 mm × 0.3 mm (0201) to large connectors.
  • Component Mounting0.5 mm pitch · BGA, QFN / QFP
    Elymer: Flip Chip, BGA, µBGA, MELF, CSP and fine pitch down to 0.4 mm.
  • 3D SPI & 3D AOI InspectionIncluded on every line
    Elymer: 3D SPI with printer feedback · 3D AOI (10 MP) with SPI feedback · X-ray in-house
  • Capacity17,50,000 placements
    ≈ 3.6 h of placement at our CPH capacity*
Email spec to EMS team

* Indicative only — based on our capacity of more than 482k CPH across 4 lines. Actual schedules depend on line allocation and your BOM.

Certifications

CERTIFIED EXCELLENCE

Elymer SMT, PCB manufacturing and production set up is certified for complying the requirement of Standards of: IATF: 16949, ISO 9001, BIS & other certifications.

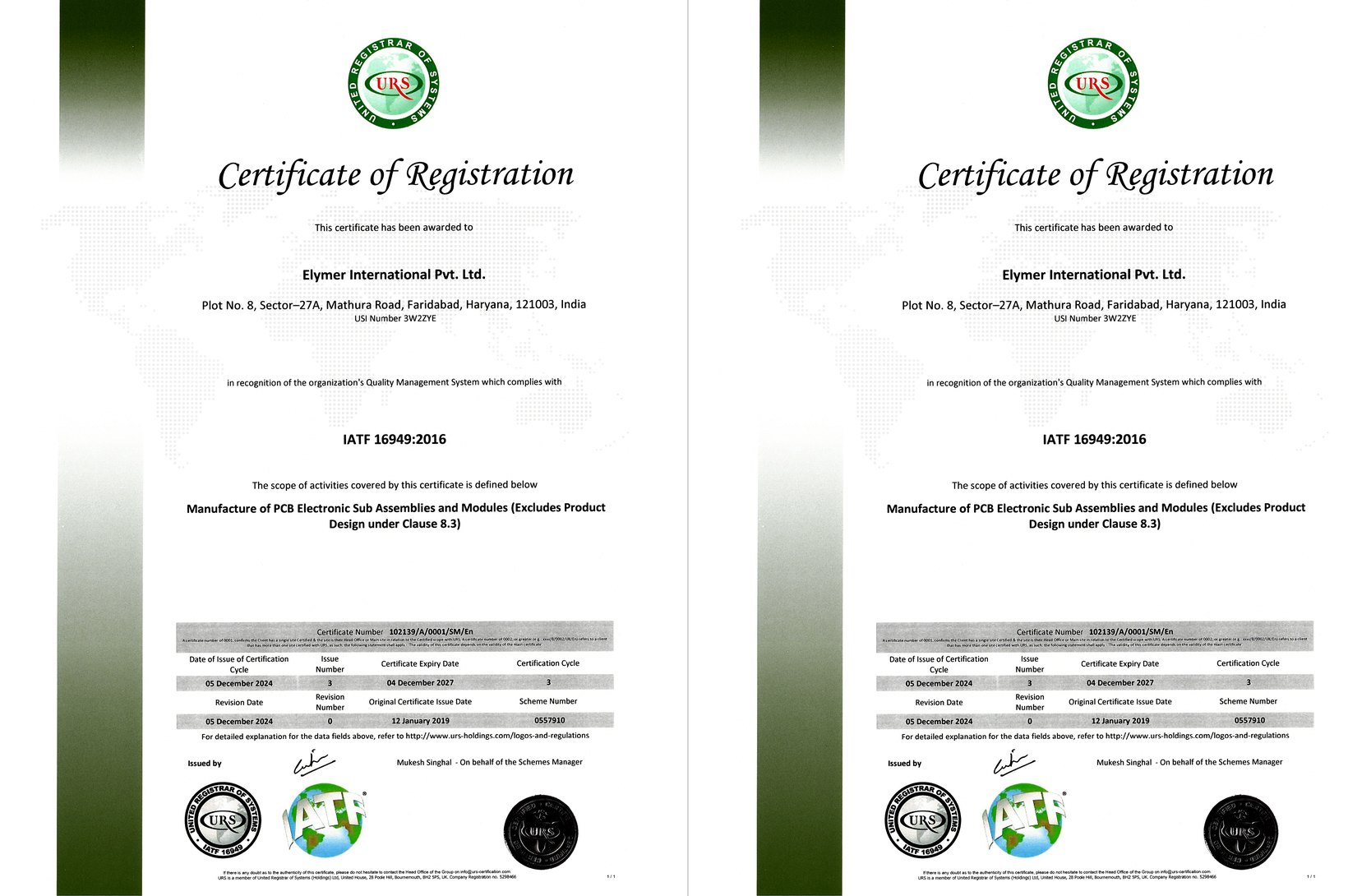

IATF 16949:2016 and ISO 9001:2015 Certifications
